Measuring garage door springs accurately is essential for the proper functionality and safety of your garage door system.
Springs balance the door’s weight, making it easier to open and close. When replacing or adjusting them, precise measurements are key to avoiding damage or unnecessary repairs.
This guide will show you how to measure garage door torsion springs, what tools to use, and how to identify the correct size for your door.
How to measure garage door springs?
To measure your garage door springs, determine their length, diameter, and wire size. Use a tape measure to find the length and a caliper for the diameter. This will help with replacements.
Key Takeaways
- Accurate measurements of your garage door springs are essential when replacing or adjusting them.
- There are two main types of springs: torsion springs and extension springs, each requiring different measuring methods.
- Incorrectly sized springs can lead to malfunctioning doors or safety hazards.

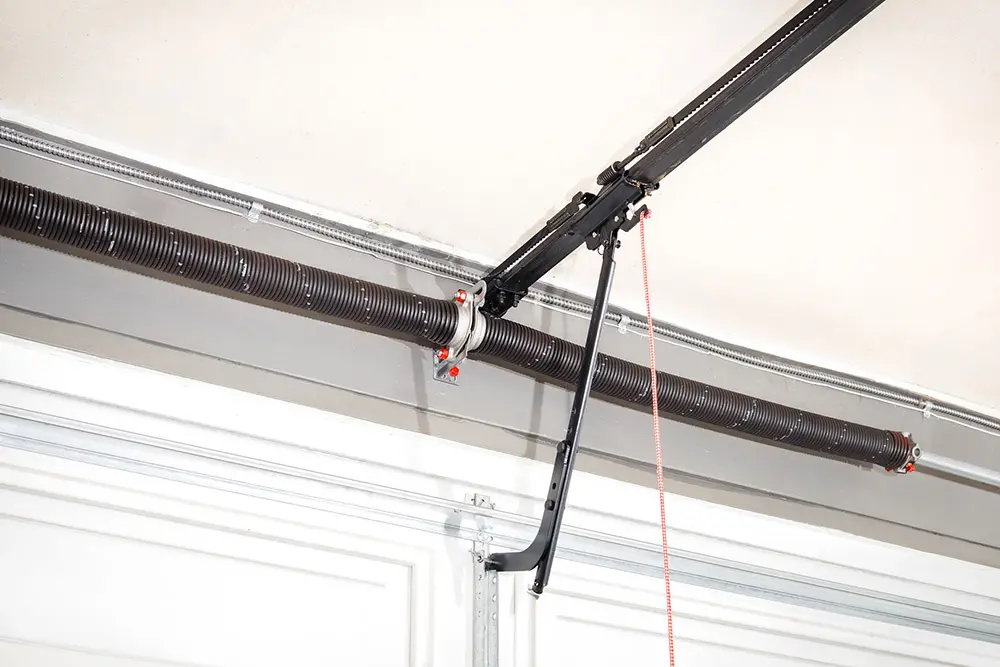

Types of Garage Door Springs
Before you begin measuring your garage door springs, it’s important to understand the two main types of springs used in garage doors:
1. Torsion Springs
Torsion springs are located above the garage door and are typically used in modern garage doors.
They are mounted on a metal shaft and work by twisting to counterbalance the door’s weight. Torsion springs are usually the most durable and provide smooth operation for the door.
2. Extension Springs
Extension springs are located on either side of the garage door, above the horizontal tracks.
They stretch and expand as the door opens and closes. While less common than torsion springs, extension springs are still used in some older or lighter garage doors.
Knowing the type of spring in your garage door is essential because the measurement process differs for torsion and extension springs.
Tools You Will Need
To measure your garage door springs, you’ll need a few basic tools:
- Tape Measure: A flexible tape measure is essential for measuring the spring length.
- Wrench: To adjust or remove the springs if needed.
- Safety Gloves: Always wear gloves to protect your hands from potential injury when handling the springs.
- Ladder: A sturdy ladder will be necessary to reach the springs, especially for torsion springs installed above the door.
Measuring Torsion Springs

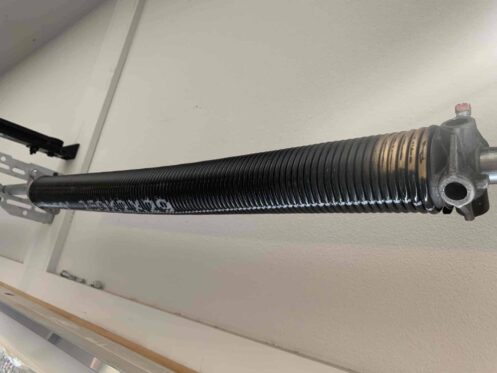

Torsion springs are typically mounted above the garage door and are easier to measure than extension springs.
Here’s how you can measure torsion springs:
Step 1: Measure the Length of the Spring
To measure the length of the torsion spring, use the tape measure to measure the entire length of the spring.
Measure from one end of the spring to the other, following the natural curve. This is important for determining the correct replacement length.
Tip: If the spring is coiled tightly, measure along the outside curve rather than the inner curve for more accurate results.
Step 2: Measure the Diameter of the Spring
Next, measure the diameter of the spring. This is the distance across the spring, from one side to the other.
Use the tape measure to determine the diameter of the coil in the spring. The diameter is a critical measurement for selecting the correct replacement.
Tip: If you have difficulty measuring the diameter, you can also use a caliper to get a more precise reading.
Step 3: Count the Number of Coils
To measure the number of coils, simply count how many turns are in the spring. Each turn or coil contributes to the overall strength and tension of the spring.
Knowing the number of coils is essential for matching the spring’s specifications when buying a replacement.
Tip: Make sure you count all the coils, including the ones near the ends that might be harder to see.
Step 4: Measure the Wire Gauge
The wire gauge refers to the thickness of the spring wire. You can measure the gauge by using a caliper or a specialized spring gauge.
Wire gauge is a critical measurement for ensuring that the spring can handle the weight of the garage door.

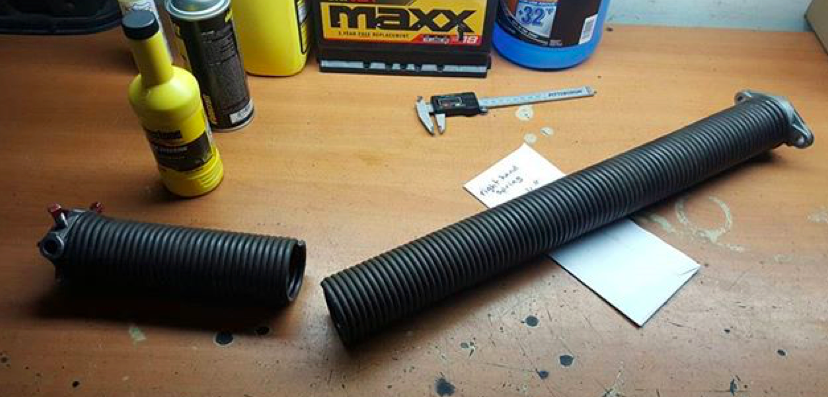

Measuring Extension Springs
When it comes to the maintenance or replacement of garage door springs, it’s essential to understand the different types of springs and how to properly measure them.
Extension springs, in particular, are commonly used in many residential garage doors.
Unlike torsion springs, which are mounted above the door, extension springs are located on either side of the door and are stretched to create tension that lifts the door.
Measuring extension springs accurately is crucial, whether you’re replacing them, inspecting them for wear, or making adjustments.
The process is slightly different from measuring torsion springs, and it requires precise measurements to ensure the correct fit and optimal functionality of your garage door system.
Here’s a step-by-step guide to learn how to measure extension springs for your garage door.
Step 1: Measure the Length of the Spring
The first measurement you need to take is the length of the extension spring. This is the distance from one end of the spring to the other when it is not stretched.
To get an accurate measurement, make sure the garage door is fully closed, as this ensures that the spring is in its uncompressed state.
How to Measure the Length:
Use a tape measure to measure from one end of the spring to the other.
Make sure the spring is not stretched or under tension. It should be in its resting position, with no force applied.
Measure the length accurately, as the spring’s size will determine the amount of tension it can provide to lift the door.
The length measurement is crucial because it determines how much the spring will stretch and how much weight it can handle when lifting the door.
A longer spring can provide more power, but it needs to fit the specific size of the door for maximum efficiency.
Step 2: Measure the Diameter of the Spring
The next important measurement is the diameter of the extension spring. This is the width of the coil of the spring, and it is essential for determining the spring’s strength and capacity.
The diameter will help you match the correct spring with the right size and weight of your garage door.
How to Measure the Diameter:
Use a tape measure or calipers to measure across the coil of the spring.
Measure at the widest point of the coil, where the spring is thickest.
Be sure to get an accurate reading, as even small variations in diameter can affect how the spring operates.
The diameter of the spring will help determine how much weight it can support and how much force it can exert.
A thicker spring typically has a higher capacity, but the exact specifications will depend on the model of the spring and the size of the door.
Step 3: Measure the Hook or End Loops
Extension springs come with hooks or end loops that connect the spring to the garage door system.
These loops are essential for properly attaching the spring to the rest of the system, allowing it to function effectively.
Measuring the size of these hooks or end loops ensures that the spring will fit properly and that the hooks can be safely attached to the other parts of the garage door system.
How to Measure the Hooks/Loops:
Measure the size of the hooks or end loops, which are typically located at both ends of the extension spring.
If the hooks are closed, measure the opening and width of the loop.
If the hooks are open, ensure that the measurement includes the complete size of the loop, including the area where the hook will attach.
These measurements are crucial because if the hooks or loops are too small or too large for the system, the spring may not fit or operate as intended, causing safety issues or preventing the door from functioning correctly.
Step 4: Check the Length of the Safety Cable
Many extension springs are paired with a safety cable, which serves a vital safety function.
If an extension spring were to break, the safety cable prevents the spring from becoming a dangerous projectile, potentially causing injury or property damage.
The safety cable is typically threaded through the center of the spring, and it is essential to measure it to ensure it’s in good condition and properly sized.
How to Measure the Safety Cable:
Measure the length of the safety cable from one end to the other.
Check for any signs of wear, fraying, or damage. A damaged safety cable can fail to secure the spring in case of a break.
Make sure the safety cable is properly sized and can handle the force exerted by the spring.
The safety cable is a crucial component of the garage door system, providing a safety mechanism in case of spring failure.
It should be installed and maintained correctly to ensure that the garage door operates safely.
Additional Tips for Measuring Extension Springs
Check the Spring’s Condition: Before measuring, inspect the spring for any signs of damage, such as cracks or excessive rust.
A damaged spring may not function properly, and it may need to be replaced before proceeding with measurements.
Safety First: Working with extension springs can be dangerous, especially if the springs are under tension.
Always take proper safety precautions when handling or measuring extension springs, and if you’re not comfortable, it’s best to call a professional.
Get the Right Replacement: Once you’ve taken accurate measurements, make sure to get a replacement spring that matches the specifications you’ve measured.
A professional can help ensure that you’re getting the correct spring for your door.

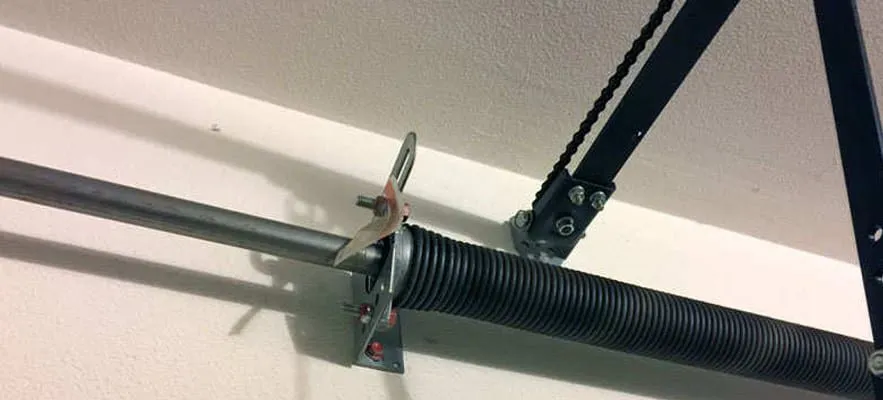

Why Accurate Measurements Matter
Getting the measurements right is essential for several reasons:
1. Safety
Incorrectly sized springs can cause the garage door to malfunction, potentially leading to safety hazards.
If a spring is too weak, it may not support the door properly, causing it to fall or fail. If the spring is too strong,
it can cause excessive stress on the door and opener, potentially leading to damage.
2. Proper Functionality
If the springs are not the correct size, the garage door will not operate smoothly.
This can result in uneven door movement, increased wear and tear on the opener, or even total failure of the garage door system.
3. Cost Efficiency
Properly sized springs will last longer, reducing the need for frequent repairs or replacements. This saves you money in the long run, as you won’t need to replace springs prematurely.
When to Call a Professional
While measuring garage door springs is something you can do yourself, it’s important to recognise when to call a professional.
If you’re uncomfortable working with high-tension springs or if your door is not functioning properly despite having accurate measurements, it’s best to consult with an expert.
Professionals have the tools, experience, and safety training required to handle garage door spring repairs and replacements.
They can ensure the job is done correctly and safely, avoiding potential injuries or damage to the door.
Frequently Asked Questions
1. How do I know if my garage door springs need replacing?
If your garage door is having trouble opening or closing, making loud noises, or is unbalanced, it may be a sign that the springs need replacing. You can also inspect the springs for visible damage.
2. How long do garage door springs typically last?
Garage door springs generally last about 10,000 cycles, which is equivalent to around 7 to 10 years of use. However, this can vary depending on how often the door is used and the type of spring.
3. Can I replace my garage door springs myself?
While it’s possible to replace garage door springs yourself, it can be dangerous if you’re unfamiliar with the process. If you’re unsure, it’s best to hire a professional to ensure proper installation and safety.
Conclusion
Measuring garage door springs accurately is essential to ensuring your door operates efficiently and safely.
Whether you have torsion or extension springs, understanding how to measure them properly can help you select the correct replacement parts.
If you’re unsure about the measurements or the condition of your springs, it’s always a good idea to consult a professional.
With the right tools and knowledge, you can keep your garage door functioning smoothly for years to come.
